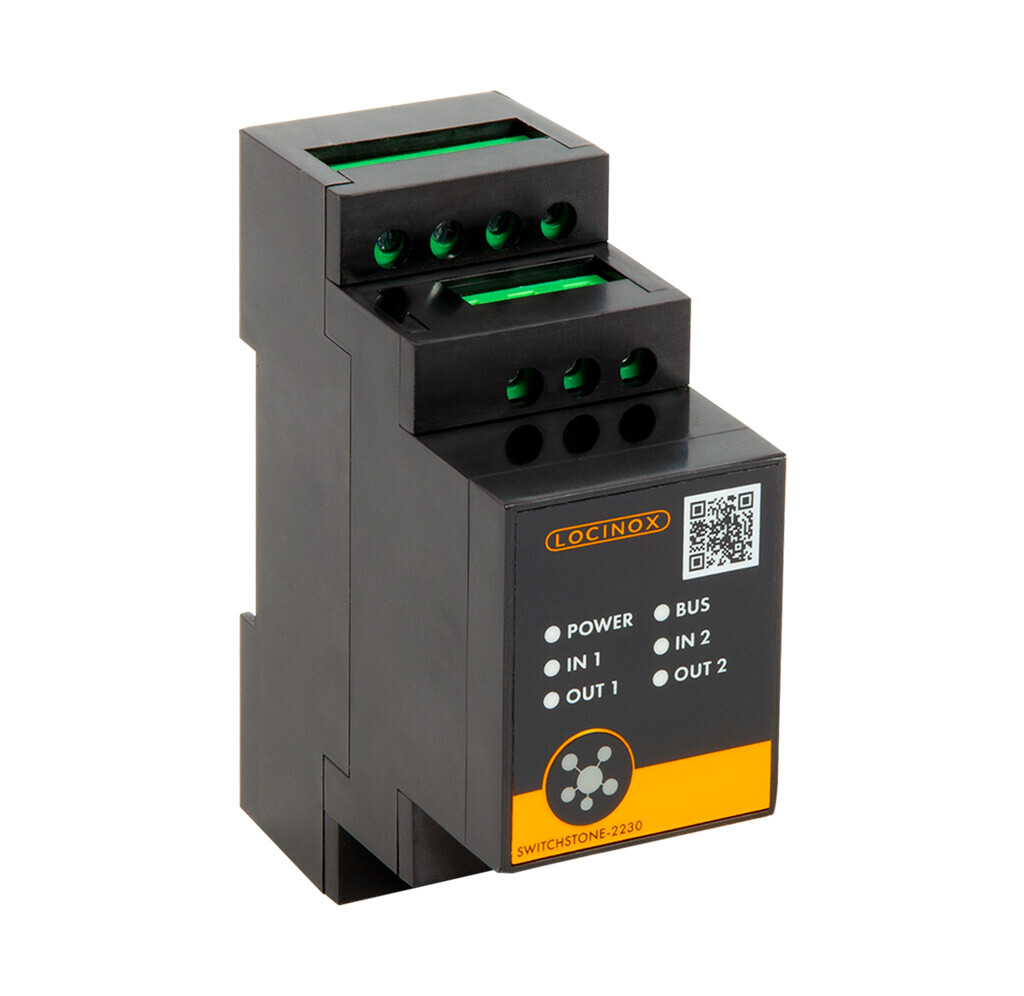

Locinox SWITCHSTONE-STD-X-230 2 channel relay module

ADDITIONAL INFORMATION

The SwitchStone-STD relay module has been developed to work in combination with devices such as the SlimStone-X keypad.

The SwitchStone-STD ensures maximum security thanks to 2 external relays, both with a Common, Fail Open and Fail Close contact. These relays are capable of switching voltages up to 250V AC/26V DC, allowing them to be used in a wide range of applications, including switching lighting.

Free exit functionality can be easily implemented using the 2 inputs on the module.

SPECIFICATION

• Includes 2 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
• Long range secure 2-wire communication with the SlimStone-X, up to 300 m distance
• Auto back up functionality

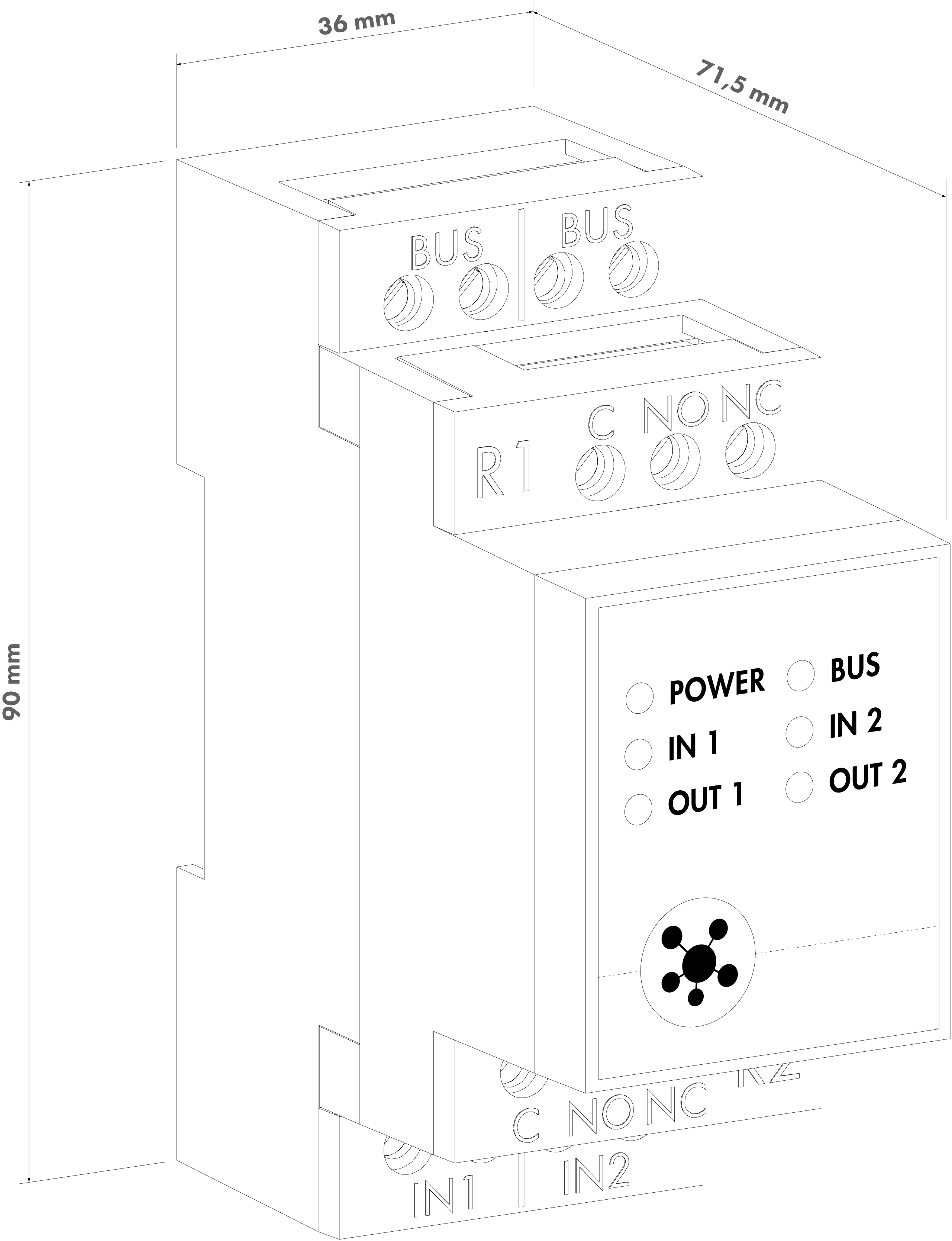

• DIN-rail mountable
• Tested from -30 up to +85° Celsius
• Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
• To be used exclusively with the Powerstone 60W power supply
• Current: maximum 0.07 A
• Consumption: maximum 1.7 W
