EL00 IG RAD KLT
EL00 IG RAD
ETRANS200

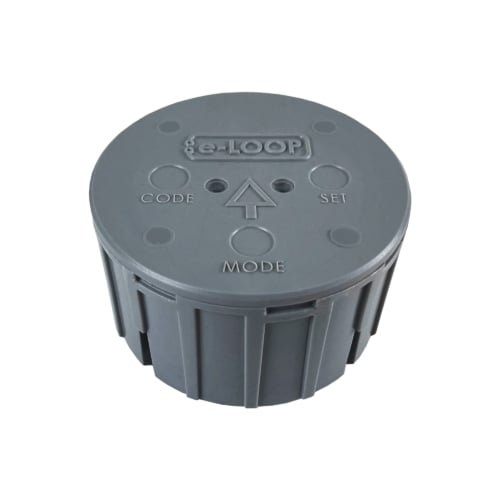

AES ELIG00-RAD-KLT E-Loop commercial in ground loop kit with 200 Transceiver for presence mode

Product Code: ELIG00-RAD-KLT

ELIG00 presence only in-ground wireless detector supplied with 200 Transceiver. Manage access for multi unit complexes with up to 200 units.

Installation in 3 simple steps

1 - Code in e-Loop.
2 - Core bore 89mm hole 70mm deep and secure using flexible mastic.
3 - Calibrate the e-Loop... and you’re ready to operate in less than 30 minutes.


Quick and easy installation.

Dual sensing technology
High security 128 bit encryption.
Recesses into driveway.
Not affected by ground movement.
14500 mA battery giving up to 10 years battery life.
Top access for changing battery.

View more
inc VAT

ADDITIONAL INFORMATION

The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles.

These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode.

The sensors are installed in the ground foundation of entry or exit passages with Lithium batteries, and can withstand almost any vehicle.

Note: Gate or door controller must have a dedicated open input and auto close function enabled

SPECIFICATION

Frequency : 433.39 MHz

Security : 128-bit AES Encryption

Range : Up to 50 metres

Battery Life: Up to 10 years

Battery type: 14500 mA battery

IP68 Rating

Magnetometer detection areas

This kit contains:

  • 1 X ELIG00-RAD

    E-Loop Commercial in ground loop only - Presence mode

  • 1 X ETRANS200

    E Loop 200 Transceiver

  • 2 X DYNABOLTS

    Fixing Bolts
